Summary
Dental labs should choose printers by throughput, validated material range, nesting/software, post-processing capacity, support, repeatability, labor, and multi-printer management. Lab economics are different from single-practice printing.
A dental lab should shortlist printers by validated applications, throughput, build capacity, material strategy, nesting, post-processing, quality control, service, and cost per usable part. Confirm each workflow in writing.
Where printed models feed an analog verification or mounting workflow, document that handoff rather than assuming the digital file replaces it. The dental articulator comparison covers adjustment, facebow, mounting, calibration, package, and support questions.
Products and sourced details
-

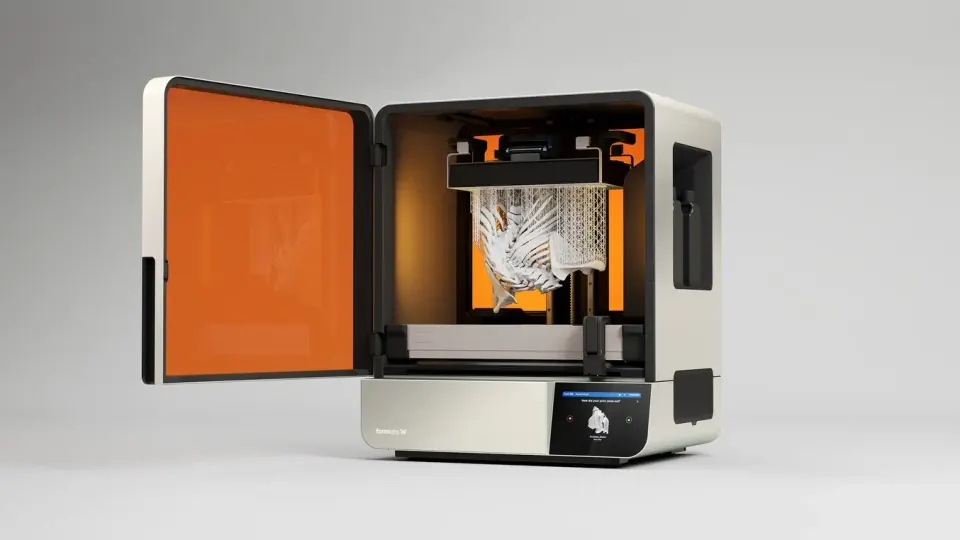

Formlabs Form 4BL
- Relevant sourced detail
Formlabs Form 4BL is the larger-format Formlabs dental printer direction.
Key sourced details
- Formlabs positions it for higher throughput than Form 4B and says it can print more than 100 models per hour with fewer interactions than Form 4B.
Workflow / procurement checks
- It should be evaluated for dental-lab production, space, wash/cure capacity, resin cost, service plan, and validated-material fit.
- Confirm non US price, availability, material validation for Formlabs Form 4BL before purchase.
- For a dental 3D printer purchase, the printer price is only one part of ownership cost.
- Verify validated materials for each indication, resin and tank costs, wash/cure requirements, nesting/software workflow, support removal, remake rate assumptions, service plans, training, ventilation/process requirements, and whether the producer or reseller supports the exact applications your practice or lab will print.
- Unknowns to verify
- price, availability, material-validation
-
Asiga MAX 2
- Relevant sourced detail
Asiga MAX 2 is a compact DLP printer available in 50 μm and 62 μm pixel-size versions, with build volumes listed as 96 × 54 × 76 mm and 119 × 67 × 76 mm respectively.
Key sourced details
- Asiga lists a 385 nm LED as standard, 405 nm on request, open material architecture, more than 650 materials available, STL/SLC/PLY/STM inputs, Composer software, lifetime updates, and Wi-Fi/Wireless Direct/Ethernet networking.
Workflow / procurement checks
- Confirm price, indication specific resin suitability for Asiga MAX 2 before purchase.
- For a dental 3D printer purchase, the printer price is only one part of ownership cost.
- Verify validated materials for each indication, resin and tank costs, wash/cure requirements, nesting/software workflow, support removal, remake rate assumptions, service plans, training, ventilation/process requirements, and whether the producer or reseller supports the exact applications your practice or lab will print.
- Use this section in the quote process by turning each unknown into a supplier question: ask what is included, what is optional, what renews annually, what must be installed or configured locally, who provides training, who handles failures, and what documentation will be supplied before purchase.
- Unknowns to verify
- price, indication-specific-resin-suitability
-
SprintRay Pro 2
- Relevant sourced detail
SprintRay Pro 2 is a dental 3D printer using patent-pending Optical Panel technology and 385 nm UV-A light.
Workflow / procurement checks
- SprintRay describes 35 μm Optical Panel technology, 6+ full-arch dental models in one job, Arch Kit speed and resin conservation, PrintOS onboard workflow software, resin tank/build platform monitoring, cloud updates, and indications such as night guards, restorations, models, and appliances.
- Confirm price, warranty, regional material availability for SprintRay Pro 2 before purchase.
- For a dental 3D printer purchase, the printer price is only one part of ownership cost.
- Verify validated materials for each indication, resin and tank costs, wash/cure requirements, nesting/software workflow, support removal, remake rate assumptions, service plans, training, ventilation/process requirements, and whether the producer or reseller supports the exact applications your practice or lab will print.
- Unknowns to verify
- price, warranty, regional-material-availability
-
HeyGears UltraCraft A2D
- Relevant sourced detail
HeyGears UltraCraft A2D is a dental 3D printer in HeyGears’ hardware ecosystem.
Workflow / procurement checks
- Public information supports treating it as quote-led and subject to regional workflow validation, so buyers should verify build volume, resin system, validated indications, post-processing hardware, software/cloud workflow, service, and local material availability directly with HeyGears or its distributor.
- Confirm price, warranty, regional workflow validation for HeyGears UltraCraft A2D before purchase.
- For a dental 3D printer purchase, the printer price is only one part of ownership cost.
- Verify validated materials for each indication, resin and tank costs, wash/cure requirements, nesting/software workflow, support removal, remake rate assumptions, service plans, training, ventilation/process requirements, and whether the producer or reseller supports the exact applications your practice or lab will print.
- Unknowns to verify
- price, warranty, regional-workflow-validation
-
Formlabs Form 4B
- Relevant sourced detail
Formlabs Form 4B is a dental SLA/LFD 3D printer.
Workflow / procurement checks
- Formlabs describes an open system for preferred third-party materials, up to 11 models in 9 minutes, biocompatible appliances in under one hour, 50 μm pixel-size claims for detail, automatic resin dispensing, validated settings, PreForm/Dashboard ecosystem, Open Material Mode, and a Dental Service Plan for onboarding and support.
- Confirm current price, base warranty, third party resin validation for Formlabs Form 4B before purchase.
- For a dental 3D printer purchase, the printer price is only one part of ownership cost.
- Verify validated materials for each indication, resin and tank costs, wash/cure requirements, nesting/software workflow, support removal, remake rate assumptions, service plans, training, ventilation/process requirements, and whether the producer or reseller supports the exact applications your practice or lab will print.
- Unknowns to verify
- current-price, base-warranty, third-party-resin-validation
Decision summary
Form 4BL
shortlist for higher-throughput Formlabs lab production.
Asiga MAX 2
shortlist for open-material precision workflows and compact production cells.
SprintRay Pro 2
evaluate if appliance/restoration workflow and cloud design matter.
HeyGears A2D and Form 4B
evaluate for smaller lab cells or specific validated workflows.
Verify before purchase
- Exact package, model, software modules, accessories, and consumables included in the quote.
- Regional warranty, service response time, loaner or replacement policy, and support hours.
- Training format, implementation timeline, data migration or installation responsibilities.
- Recurring software, cloud, subscription, support, storage, materials, parts, or consumable costs.
- Compatibility with your current scanners, PMS, labs, CAD/CAM tools, materials, payment systems, imaging systems, or IT environment.
- Tax, shipping, financing, cancellation, renewal, and data-export terms.
Official links
Formlabs Form 4BL official page Asiga MAX 2 official page SprintRay Pro 2 official page HeyGears UltraCraft A2D official page Formlabs Form 4B official page
Evidence limits
Dental Spec Guide did not perform hands-on testing for this page. Product details should be rechecked before purchase because models, bundles, software terms, prices, and regional availability can change.
